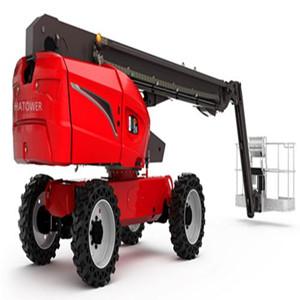

自行走直臂式高空作业平台

工作高度: 22/30/40m平台高度: 20/28/38m额定载重 : 250kg整机重量: 15000/20000kg产品名称: 进口柴油直臂高空作业车
详细参数

产品型号MODEL

HAWP-22

HAWP-24

HAWP-27

HAWP-29

HAWP-30

HAWP-32

HAWP-34

HAWP-38

HAWP-40

HAWP-44

外形尺寸/重量MEASUREMENTS/WEIGHT

公制Metric

最大工作高度Working height maximum

22.8m

24m

27m

28.8m

30m

32.5m

34m

38.35m

40.4m

44m

最大平台高度Poatform height maximum

20.8m

22m

25m

26.8m

28m

30.5m

32m

36.35m

38.4m

42m

最大水平幅度Horizontal reach maximum

18.5m

19.5m

19.0m

20.6m

20.2m

21.6m

23.2m

22.5m

23.8m

23.2m

平台长*宽*高Platform length*width*height

1.83m*0.76m*1.13m

2.44m*0.91m*1.13m

收车高度Height-stowed

2.7m

2.7m

2.83m

2.83m

2.83m

3.05m

3.05m

3.05m

3.10m

3.10m

收车长度Lenght-stowed

9.6m

10.7m

11.36m

12.35m

12.3m

12.9m

13.95m

12.95m

13.9m

14.5m

轮轴收缩宽度Width-axle retracted

2.5m

2.5m

2.75m

2.75m

2.75m

2.45m

轮轴伸展宽度Width-axel extended











3.3m

3.3m

轴距Wheelbase

2.5m

2.5m

3.0m

3.0m

3.5m

3.65m

3.95m

离地间隙Ground clearance-center

0.43m

重量 2轮驱动Weight 2WD

     4轮驱动Weight 4WD

13106kg/

13180kg

13243kg/

13323kg

16053kg/

16146kg

16196kg/

16276kg

16320kg/

16400kg

18495kg/

18575kg

18630kg/

18710kg

20015kg/

20095kg

20126kg/

20206kg

21150kg/

21230kg

性能参数PRODUCTIVITY



承载能力(受限幅度)Lift capacity(restricted)

480kg

承载能力(非受限幅度)Lift capacity(non-restricted)

260kg

230kg

230kg

200kg

230kg

340kg

340kg

340kg

230kg

230kg

平台旋转Platform rotation

160°

飞臂旋转Jib rotation



135°



135°





135°



135°

135°

转台回转Turntable swing

360°continuous

转台尾摆-轮轴收缩Turntable tailswing-axle retracted

1.15m

1.15m

1.33m

1.33m

1.33m

1.53m

1.53m

1.82m

1.82m

1.82m

转台尾摆-轮轴伸展Turntable tailswing-axle extended











1.28m

1.28m

1.38m

1.38m

1.38m

收车行驶速度Travel speed-stowed

5.4km/h

5.4km/h

4.6km/h

作业行驶速度Travel speed-raised or extended

1.2km/h

1.2km/h

1.2km/h

转弯半径-轮轴收缩           内侧inside

Turning radius-axle retracted    外侧outside

2.8m

5.0m

3.56m

6.22m

3.56m

6.22m

3.15m

5.45m

转弯半径-轮轴伸展           内侧inside

Turning radius-axle extended    外侧outside











2.73m

5.82m

2.73m

5.82m

3.15m

6.80m

爬坡度Gradeability-stowed(2WD/4WD)

30%/45%

30%/42%

28%/40%

控制Controls

12VDCPortional

实心轮胎Solid tires

9.00-20/7.5

12.00-20/8.5

385/65D 22.5

动力配置POWER



动力Power

Cummins B3.3-C60 (45kw)

Cummins B3.3-C80(60kw)

应急动力单元Auxiliary power unit

24VDC

液压油箱/燃油箱容量Hydraulic tank/Fuel tank capacity

185L/155L

260L/155L

描述展示

The characteristics of the product:

proportional controller

Strong climbing ability

The short arm can swing freely

The maximum height of vehicle

Tilt and overload automatic alarm (warning light and sound warning)

The built-in charger

Emergency manual drop

Negative braking system

In the platform of warning buzzer

calculagraph

Battery charging status indicator

hole for hoist

The built-in auxiliary diagnostic equipment

Pre set 220V

Anti tilt system

No trace of tire

The grid floor visual platform

CANBUS assembly

The platform.

The platform control protective sleeve
